Outdoor Line Up Kiosk Upto 12 KV
Product Details:
X
Product Description

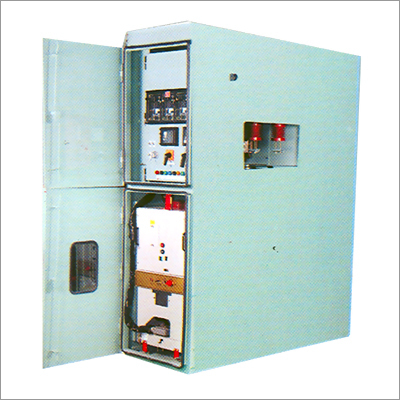

Outdoor Line Up Kiosk Upto 12 KV
Good quality stands for installation of heavier electronic switchgears and panels are desired in various industries. We understand the requirement of discerning clients therefore we present highly useful Outdoor Line Up Kiosk Upto 12 KV. These kiosks are capable of handling heavier electrical loads up to a range of 12 kilo volts. With below given specifications Outdoor Line Up Kiosk Upto 12 KV can be availed.
- Suitable for rear cable entry/ side cable entry (Optional).
- metal enclosed outdoor Panel with Draw out Type horizontal isolation VCB.
Technical Specification
| Model | Line Up | ||||
| Rated Voltage | kV | 12 | |||
| No Of Poles | Nos | 3 | |||
| Frequency | Hz | 50 | |||
| Rated Current | Amp | 800/1250 | 800/1250/1600 | 800/1250 | 800/1250/2000 |
| Symmetrical Breaking Capacity | KA-rms | 20 | 26.3 | 31.5 | 40 |
| Making Capacity | kApk | 50 | 65.75 | 78.75 | 100 |
| DC Component | % | <50 | |||
| Duration of Short Time Current | Sec | 3 | |||
| Impulse Withstand Voltage | KVpk | 75 | 75 | ||
| Power Frequency with stand for 1 Min | kVrms | 28 | 28 | ||
| No of Breaks Per Phase | No | One | |||
| Total break Time | Cycles. | 3 max | 3.5 max | ||
| Make Time | Cycles. | 3 max | |||
| Duty Cycle | Cycles. | O-0.3 sec. - CO -3 min.-CO (Rapid Auto reclosing Duty) | |||
| Degree of Protection | IP54 | ||||
| Applicable Standard | IS 13118: IEC 62271 - 100 / IEC 62271-200 | ||||
| Item | Description |
| 1 | Vacuum Circuit Breaker |
| 2 | V.C.B Chambber |
| 3 | Spout Bushing |
| 4 | Support Insulator |
| 5 | BusBars |
| 6 | Current Transformer |
| 7 | C.T.Connection |
| 8 | Cable Termination (1-3 Crore) |
| 9 | Swing Panel |
| 10 | Roof bushing |
| 11 | Voltage transformer. (When Required) |
