Ready To Use Power Sub-station

Product Description

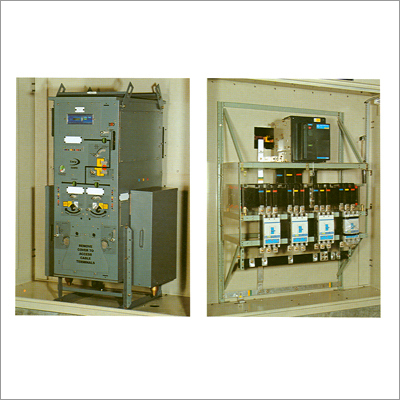

Ready To Use Power Sub-station

We have gained an expertise in offering best performing Ready To Use Power Sub-station. These stations are shock proof solution and are given with additional safety features. We customize the range as per the requirements of clients therefore these substations are highly preferred in the market. Important specifications and options in which Ready To Use Power Sub-station can be availed are given below.

Crompton Greaves Make Unitised Substation

Compact Outdoor type systems for 11 KV substation having Circuit breakers/Switch Fuse unit on h.T. side, Transformer - Dry / Oil filled upto 1000 KVA and a complete L.T. Distribution Board Customized to the requirement of user.

Construction

• Suitable for Outdoor Installation
• Separate Double Door for each Compartment
• Separate compartment for H.T Circuit Breaker Transformer
• L.T. Distribution Board
• Mounted on Common base for easy installation


Options

HV Compartment

• Ratings upto 12 KV
• Vacuum Circuit Breaker
• SF6 Circuit Breaker Ring Main Unit Type : VRN
• Non Extensible Oil Filled Fused Ring Main unit Type:FRMU

Any other variation in above can be offered on demand

Transformer Compartment

• Rating upto 12 KV, 1000 KVA
• Dry Type
• oil Filled Type

Transformer is of hermetically sealed type equipped with draw-out MV terminals

LT Compartment

• Rating upto 2000 A, 440 V

Incomer

• Air Circuit Breaker
• Fuse-protected feeder board
• Moulded Case Circuit Breakers

Outgoing

• Fuse-protected 4-12 feeders
• MCCB- 4-10 feeders
• Optional LV Metering can be provided
